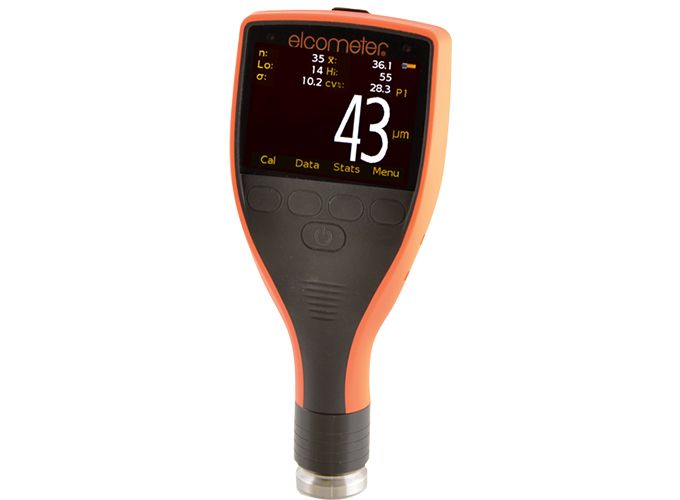

224 Digital Surface Profile Gauge Integral (MODEL B)

SKU: 5200010



Quick Quote


The Elcometer 224 Digital Surface Profile Gauge provides the very latest in surface profile measuring technology for measuring surface profile on either flat or curved surfaces.

Accurate Surface Profile Measurements

  • Can be used in accordance with National and International Standards
  • Temperature stable measurements
  • Statistics are calculated and displayed in real time during inspection

A Powerful Surface Profile Gauge

  • User replaceable tough tungsten carbide tip, can be used for up to 20,000 surface profile readings
  • USB and Bluetooth® data output to iPhone¹ or Android™ devices
  • Measures surface profiles up to 500μm (20mils)
  • Review batch data or last 20 readings in a graph format

Efficient Inspections

  • Fast reading rate of 50+ per minute

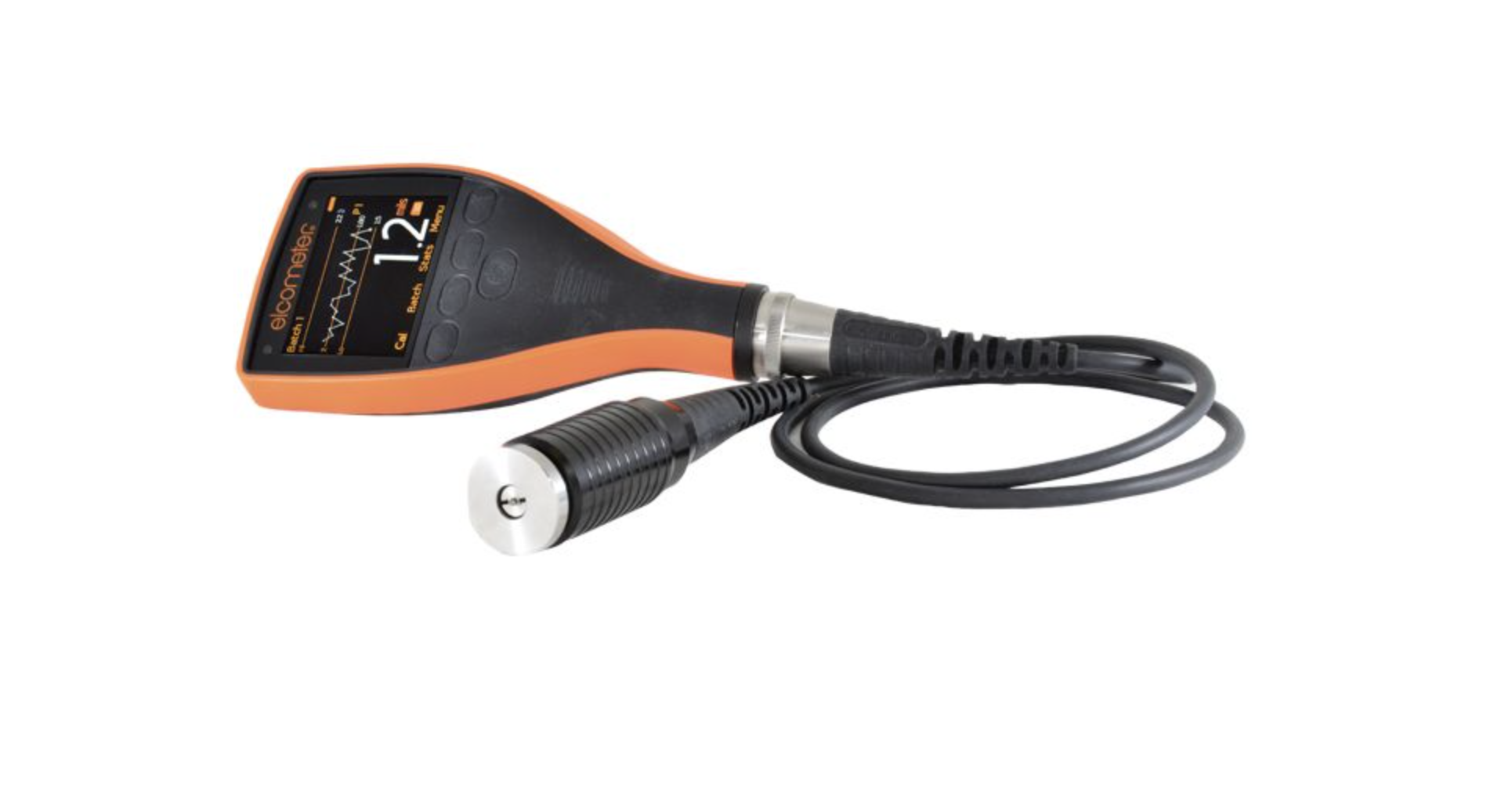

  • Integral and separate probe versions to suit your application
  • Alpha numeric batch identification
  • Compatible with ElcoMaster® software and ElcoMaster® Mobile App


Elcometer 224 Digital Surface Profile Gauge Model T

ASTM D 4417-B, SANS 5772, SSPC PA 17, US Navy NSI 009-32, US Navy PPI 63101-000

Technical Specification

Display Information 2.4” (6cm) QVGA colour TFT display, 320 x 240 pixels
Battery Type 2 x AA batteries, rechargeable batteries can also be used
Battery Life Approximately 24 hours of continuous use at 1 reading per second2
Minimum Headroom Integral: 185mm (7.3”)
Separate: See probe technical specification
Dimensions Integral: 168 x 73 x 37mm (5.61 x 2.87 x 1.46”)
Separate: 141 x 73 x 37mm (5.55 x 2.87 x 1.46”)
Weight Integral Gauge (including batteries): 218g (7.69oz)
Separate Gauge (including batteries): 161g (5.68oz)
Measurement Range 0-500μm (0-20mils)
Probe Tip Tungsten carbide tip 60° angle
Tip Radius 50μm (2mil)
Operating Temperature -10 to 50°C (14 to 122°F)
Storage Temperature -10 to 60°C (14 to 140°F)
Accuracy3 ±5% or ±5μm (±0.2mil)
Resolution 1μm (0.1mil);
Packing List Elcometer 224 Digital Surface Profile Gauge, glass zero tile4, 2 x calibration foils4, wrist harness, plastic transit case (T), protective case, screen protector, probe protection cap4, 2 x AA batteries, test certificate, operating instructions, USB cable (T) & ElcoMaster® software (T)

Additional information

Weight 0.21 kg
Dimensions 30 × 30 × 30 cm
